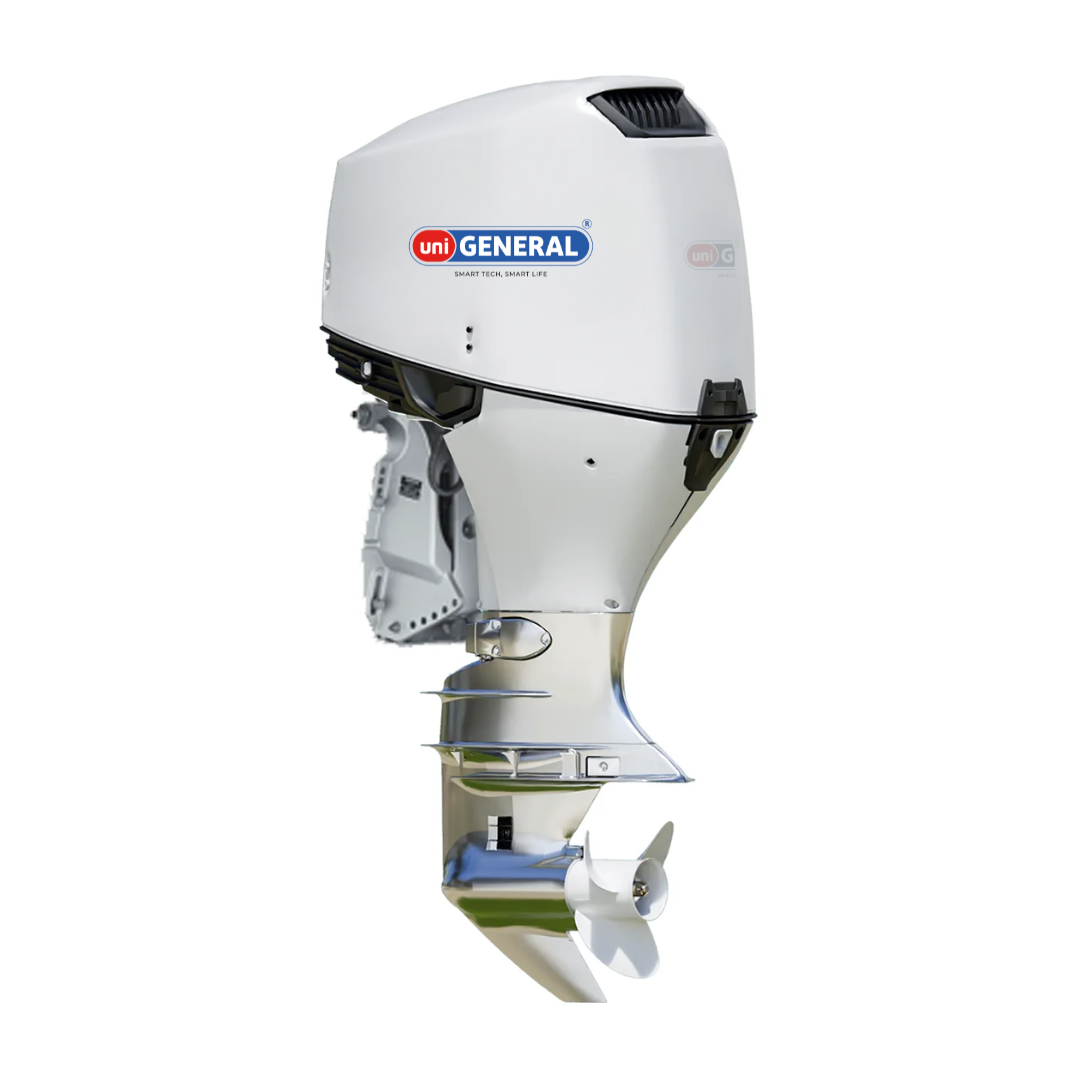

PNF175 Four-Stroke Outboard
- Cylinder Number: 4
- Displacement: 2354cc
- Bore * Stroke: 87x99mm
- Max Output: 175hp@5500rpm
- Dry Weight: 225kg
- SYSTEM: EFI
Characteristics PNF175 PNF150 PNF135 Motor Type 4 Cylinder 4 Cylinder 4 Cylinder Displacement 2354cc 2354cc 2354cc Bore*stroke 88*99mm 87*99mm 87*99mm Compression Ratio 10 9.6 9.6 Full Throttle Speed Range 5000-6300 5000-6300 5000-6300 Max.Prop Shaft Output 128.7kW(175HP) @5500 rpm 110.3kW(150HP) @5500rpm 99.3kW(135HP) @5500rpm Fuel/induction System OHC OHC OHC Intake Naturally aspirated Naturally aspirated Naturally aspirated Exhaust Through Propeller Through Propeller Through Propeller Cooling Water/Thermostatic Control Water/Thermostatic Control Water/Thermostatic Control Alternator Output 12V 40A 12V 40A 12V 40A Starter Manual/Electric Manual/Electric Manual/Electric Engine Oil Capacity 6.7L 6.7L 6.7L Gear Ratio 2.14 2.14 2.14 Gear Shift F-N-R F-N-R F-N-R Transom Height S: 508mm
L: 635mmS: 508mm
L: 635mmS: 508mm
L: 635mmDry Weight S: 217kg
L: 220kgS: 217kg
L: 220kgS: 217kg
L: 220kgSteering Angle(maximum) ±30° ±30° ±30° fuel tank 24L 24L 24L
