Nominal Voltage 12.8 Nominal Capacity 100Ah Nominal Energy 1280Wh Standard Charge Current 0.2C(CC-CV) Max. Charge Curent 1C Charge Condition 0°C~45°C Standard Discharge Current 0.5C Max. Continuous Discharge Current 1C Discharge Condition -20°C~65°C Size 330*172*215mm Weight 10.5±0.3kg Enclosure ABS Case, IP67 Terminals/Interfaces M8 Cycle Life 6000cycles 80%DoD, 25℃/ 0.2C Cell Configuration 4S1P

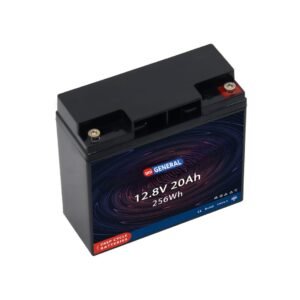

Nominal Voltage 12.8 Nominal Capacity 20Ah Nominal Energy 256Wh Standard Charge Current 0.2C(CC-CV) Max. Charge Curent 1C Charge Condition 0°C~45°C Standard Discharge Current 0.5C Max. Continuous Discharge Current 1C Discharge Condition -20°C~65°C Size 181*77*170mm Weight 2.1±0.3kg Enclosure ABS Case, IP67 Terminals/Interfaces M5 Cycle Life 6000cycles 80%DoD, 25℃/ 0.2C Cell Configuration 4S1P

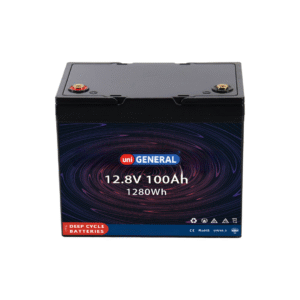

Nominal Voltage 12.8V Nominal Capacity 100Ah Nominal Energy 1280Wh Standard Charge Current 0.2C(CC-CV) Max. Charge Curent 1C Charge Condition 0℃~45℃ Standard Discharge Current 0.5C Max. Continuous Discharge Current 1C Discharge Condition -20℃~65℃ Size 307*169*208mm Weight 11.5±1kg Enclosure ABS Case, IP67 Terminals/Interfaces M8 Cycle Life 6000 cycles DoD80% 0.2C/0.5C Cell Configuration 4S1P

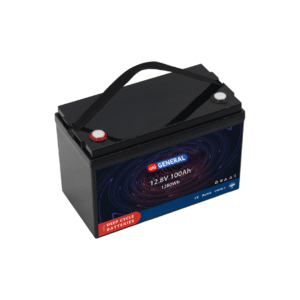

Nominal Voltage 12.8V Nominal Capacity 100Ah Nominal Energy 1280Wh Standard Charge Current 0.2C(CC-CV) Max. Charge Curent 1C Charge Condition 0°C~45°C Standard Discharge Current 0.5C Max. Continuous Discharge Current 1C Discharge Condition -20°C~65°C Size 260*168*209mm Weight 11±0.3kg Enclosure ABS Case, IP67 Terminals/Interfaces M8 Cycle Life 6000 cycles DoD80% 0.2C/0.5C Cell Configuration 4S1P

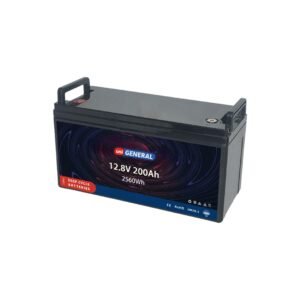

Nominal Voltage 12.8V Nominal Capacity 200Ah Nominal Energy 2560Wh Standard Charge Current 0.2C(CC-CV) Max. Charge Curent 1C Charge Condition 0℃~45℃ Standard Discharge Current 0.5C Max. Continuous Discharge Current 1C Discharge Condition -20℃~65℃ Size 406*173*236mm Weight 21±1kg Enclosure ABS Case, IP67 Terminals/Interfaces M8 Cycle Life 6000 cycles DoD80% 0.2C/0.5C Cell Configuration 4S1P

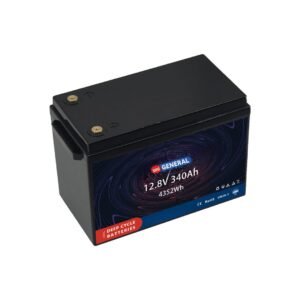

Nominal Voltage 12.8V Nominal Capacity 340Ah Nominal Energy 4352Wh Standard Charge Current 0.2C(CC-CV) Max. Charge Curent 1C Charge Condition 0℃~45℃ Standard Discharge Current 0.5C Max. Continuous Discharge Current 1C Discharge Condition -20℃~65℃ Size 345*190*245mm Weight 29±1kg Enclosure ABS Case, IP67 Terminals/Interfaces M8 Cycle Life 6000 cycles DoD80% 0.2C/0.5C Cell Configuration 4S1P

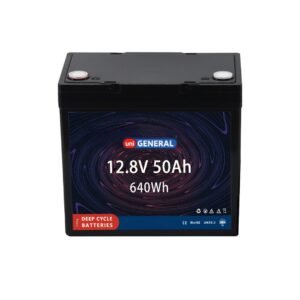

Nominal Voltage 12.8V Nominal Capacity 50Ah Nominal Energy 640Wh Standard Charge Current 0.2C(CC-CV) Max. Charge Curent 1C Charge Condition 0°C~45°C Standard Discharge Current 0.5C Max. Continuous Discharge Current 2C Discharge Condition -20°C~65°C Size 229*138*208mm Weight 7±0.3kg Enclosure ABS Case, IP67 Terminals/Interfaces M8 Cycle Life 6000 cycles DoD80% 0.2C/0.5C Cell Configuration 4S1P

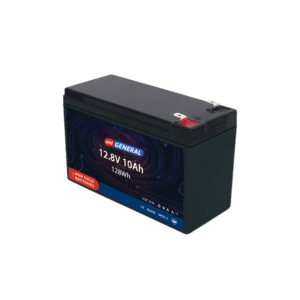

Nominal Voltage 12.8 Nominal Capacity 10Ah Nominal Energy 128Wh Standard Charge Current 0.2C(CC-CV) Max. Charge Curent 1C Charge Condition 0°C~45°C Standard Discharge Current 0.5C Max. Continuous Discharge Current 1C Discharge Condition -20°C~65°C Size 145*60*82mm Weight 1.05±0.3kg Enclosure ABS Case, IP67 Terminals/Interfaces M8 Cycle Life 3000cycles 80%DoD, 25℃/ 0.2C Cell Configuration 4S4P

Nominal Voltage 25.6V Nominal Capacity 100Ah Nominal Energy 2560Wh Standard Charge Current 0.2C(CC-CV) Max. Charge Curent 100A Charge Condition 0℃~45℃ Standard Discharge Current 0.5C Max. Continuous Discharge Current 100A Discharge Condition -20℃~65℃ Size 483*170*240mm Weight 21±1kg Enclosure ABS Case, IP67 Terminals/Interfaces M8 Cycle Life 6000 cycles DoD80% 0.2C/0.5C Cell Configuration 4S1P

Nominal Voltage 25.6V Nominal Capacity 200Ah Nominal Energy 5120Wh Standard Charge Current 0.2C(CC-CV)   Max. Charge Curent 1C Charge Condition 0°C~45°C Standard Discharge Current 0.5C Max. Continuous Discharge Current 1C Discharge Condition -20°C~60°C Size 640*245*220mm Weight 42±1kg Enclosure ABS Case, IP67 Terminals/Interfaces M8 Cycle Life 5000 cycles DoD80% 0.2C/0.5C Cell Configuration 8S1P

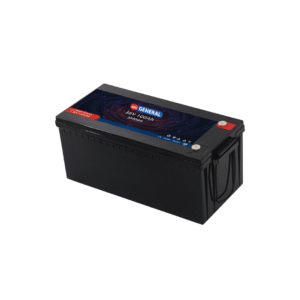

Nominal Voltage 38.4V Nominal Capacity 100Ah Nominal Energy 3840Wh Standard Charge Current 0.2C(CC-CV) Max. Charge Curent 1C Charge Condition 0°C~45°C Standard Discharge Current 0.5C Max. Continuous Discharge Current 1C Discharge Condition -20°C~65°C Size 520*268*220mm Weight 38±1kg Enclosure ABS Case, IP67 Terminals/Interfaces M8 Cycle Life 6000 cycles DoD80% 0.2C/0.5C Cell Configuration 12S1P
