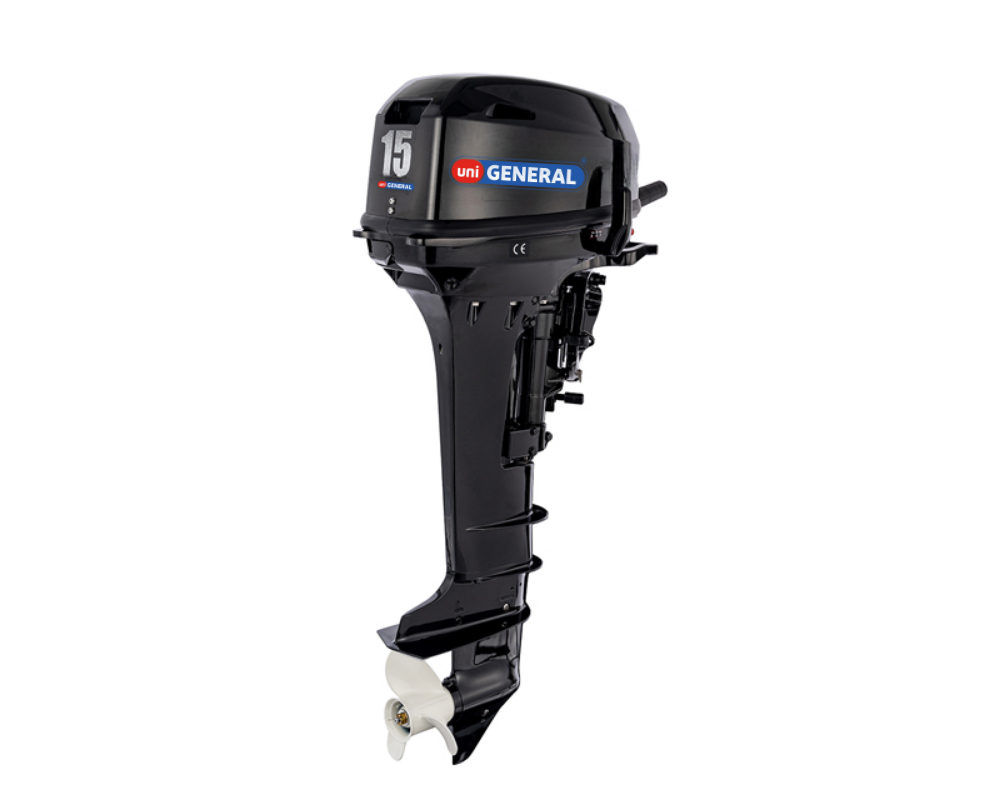

TE15 Outboard Motor

TE15 is a specially improved outboard motor based on market feedback. Compared with similar 15hp outboard motors, TE15 is smaller, taking up less space. Most important is that TE15 is better in quality and reliability and less fuel consumption, so that it is more suitable for commercial use, such as fishing industry. At the same time, the side gear structure is more in line with the usage habits of fishermen.

Description

SPECIFICATIONS
Model TE15
Overall Length T15BMS/T15BML
Transom Height 15in./20in.
Dry Weight 38kg/40Kg
Max. RPM range 4500~5500r/min
Max. Output Power 11kW(15HP)@5000
Idling RPM range 1000~1100 r/min
Engine Type L2  Reed Valve
Displacement 246cc
Bore X Stroke 56×50 mm
Ignition Timing CDI
Steering System Tiller handle
Starting System Manual start
Gear Shift F-N-R
Gear Ratio 2.08
Trim &Tilt Manual tilt
Fuel Tank Capacity 24L
Max. Fuel Consumption 7.7L/h
Gear Oil Capacity 250cc
Mixing Ratio(fuel:oil) 50:1
Propeller 3-8″/10″/11″/12″
