Unigeneral Marine

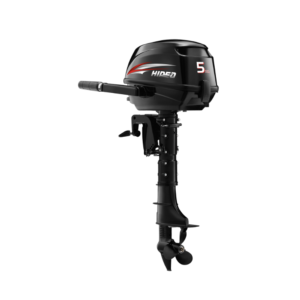

F5 Outboard Motor

F5 is designed as a small power 4-stroke outboard motor, suitable for personal leisure and entertainment, and used to boats, rubber boats within 5 meters. F5 and F4 come from the same development plateform, so they can share most parts. Their light weights, combined with built-in carrying handles and an oil-leak prevention system for on-side storage capability create true portability. Add to that their efficiency, performance and reliability and these pint-sized powerhouses are perfect for all sorts of light duty.

Description

Model F5
Specs Option F5BMS/F5BML
Transom Height 15in. or 20in.
Weight 24.5Kg/25.5kg
Full Throttle Operating Range 4000~5000r/min
Maximum Output Power 3.6kW(5HP)@5000r/min
Idling Speed Range 1500~1600 r/min
Engine Type OHV
Displacement 112 cc
Bore*Stroke 59.0×41.5 mm
Ignition System TCI
Steering System Tiller
Start System Manual start
Gear Positions F-N-R
Gear Ratio 2.08
Trim and Tilt System Manual
Fuel Tank Capacity Built-in 1.3L
Max. Fuel Consumption 2.0L/h
Engine Oil Capacity 0.5L
Gear Oil Capacity 100cc
Propeller Potions 3-7″in.
